STM-1, E1 and T1, Non-Intrusive Hi-Impedance
Monitoring Groomers and HSL Solutions

Suitable for bi-directional monitoring of 16, 32 and 64, E1 and T1 and SDH STM-1, STM-4/16 links and E1 HSL (High Speed Signaling Link) equipment.

Valiant offers a wide range of E1 and T1 Groomers for non-intrusive monitoring applications. The VCL-MegaConnect, E1 and T1, Hi-Z Monitoring Groomers may be used for non-intrusive monitoring of "live" E1 and T1 traffic links, non-intrusively, through a high impedance monitoring point on a patch panel or a DDF. The equipment also allows the user to groom the selected time-slots carrying the monitored data to selected E1 or T1 normal impedance ports which can be connected to protocol analysers, probes, test equipment, billing servers etc.




VCL-PG, 16/32E1 Packet Monitoring Solution

Valiant's ‘VCL-PG, 16/32E1 Packet Monitoring Solution’ may be used to groom up to
16 / 32 x E1 channels and convert their payload to RFC 5086, RFC 5087 and RFC 4553
compliant Ethernet Packets. The VCL-PG, 16/32E1 Packet Monitoring Solution is
equipped with a highly reliable clock recovery mechanism for low jitter and wander
control, even under variable network conditions.

Read More... Get Data Sheet
groomers


STM-1 Monitoring Groomer

VCL-STM-1 Monitoring Groomer is a cost-effective monitoring and grooming equipment which may be used to "non-intrusively" monitor "bi-directional" STM-1 links through a 80:20 optical splitter patch panel and allow the user to select 64Kbps time-slots and groom them to E1 output ports, which may be then connected to E1 probes, E1 signaling analyzers and billing servers etc.

Read More... Get Data Sheet


E1 - 16 Port Plus - E1 Groomer

VCL-MegaConnect, the E1 (also available in T1) 16 port Hi-Z Monitoring Groomer is available for non-intrusive live traffic monitoring (high impedance) applications in which E1 (or T1) ports can be connected to monitoring / billing equipment for non-intrusive monitoring of live traffic or signaling, required by billing servers etc.

Read More... Get Data Sheet


E1 - 32 Port Plus - E1 Groomer

VCL-MegaConnect, the E1 x 32 port Hi-Z Monitoring Groomer is available for special non-intrusive monitoring (high impedance) applications in which E1 (and T1) ports can be connected to monitoring / billing equipment for non-intrusive monitoring of live traffic or signaling, required by billing servers etc. In the monitoring mode the groomer provides the user a total of 36, E1 Ports.

Read More... Get Data Sheet


T1 - 32 Port Plus - T1 Groomer

VCL-MegaConnect, the T1 x 32 port Hi-Z Monitoring Groomer is available for special non-intrusive monitoring (high impedance) applications in which T1 ports can be connected to monitoring / billing equipment for non-intrusive monitoring of live traffic or signaling, required by billing servers etc. In the monitoring mode the groomer provides the user a total of 36, T1 ports.

Read More... Get Data Sheet


E1 - 64 Port Plus - E1 Groomer

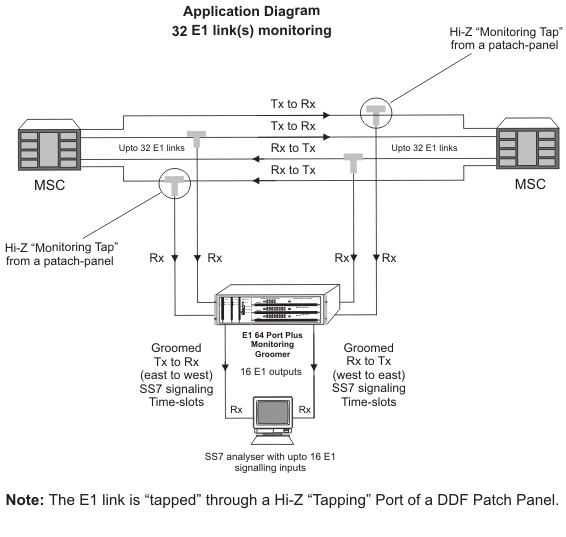

The VCL-MegaConnect, 64 Port Plus - E1 Monitoring Groomer is suitable for non-intrusive monitoring of upto 32, "live" E1 traffic links, bidirectionally (i.e. in both transmit and receive directions through its 64 E1 receivers) through a high impedance (Hi-Z) path. Additionally, the equipment also provides 16 output E1 ports that shall connect the aggregated time-slots which have been non-intrusively "monitored" from the 32, "live" E1 traffic links to the user's protocol analysers, test probes, etc.

Read More... Get Data Sheet


T1 - 64 Port Plus - T1 Groomer

The VCL-MegaConnect, 64 Port Plus - T1 Monitoring Groomer is suitable for non-intrusive monitoring of upto 32, "live" T1 traffic links, bidirectionally (i.e. in both transmit and receive directions through its 64 T1 receivers) through a high impedance (Hi-Z) path. Additionally, the equipment also provides 16 output T1 ports that shall connect the aggregated time-slots which have been non-intrusively "monitored" from the 32, "live" T1 traffic links to the user's protocol analysers, test probes, etc.

Read More... Get Data Sheet


64 Port E1 HSL (High-Speed Signaling Link) Monitoring Groomer

VCL-64HSL, 64 Port E1, HSL (High Speed Signaling Link) Monitoring equipment is suitable for "non-intrusive" monitoring application and for monitoring of upto 32, "live" HSL E1 (High Speed Signaling Link) traffic links, bi-directionally (i.e. in both transmit and receive directions). The equipment can be used to monitor all types of E1 links (fractional or whole, unframed, framed).

Read More... Get Data Sheet


64 Port T1 HSL (High-Speed Signaling Link) Monitoring Groomer

VCL-64HSL, 64 Port T1, HSL (High Speed Signaling Link) Monitoring equipment is suitable for "non-intrusive" monitoring application and for monitoring of upto 32, "live" HSL T1 (High Speed Signaling Link) traffic links, bi-directionally (i.e. in both transmit and receive directions). The equipment can be used to monitor all types of T1 links (fractional or whole, unframed, framed).

Read More... Get Data Sheet
