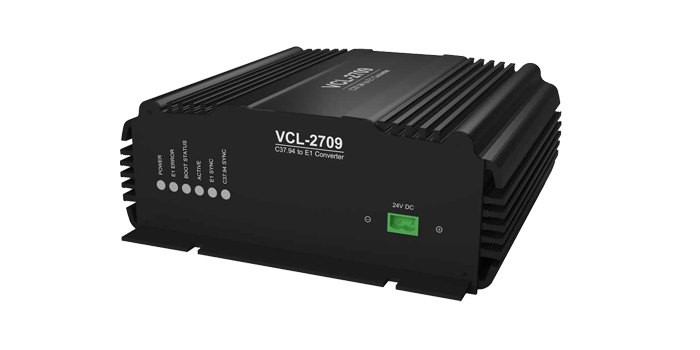

IEEE C37.94 to E1 Converter - DIN

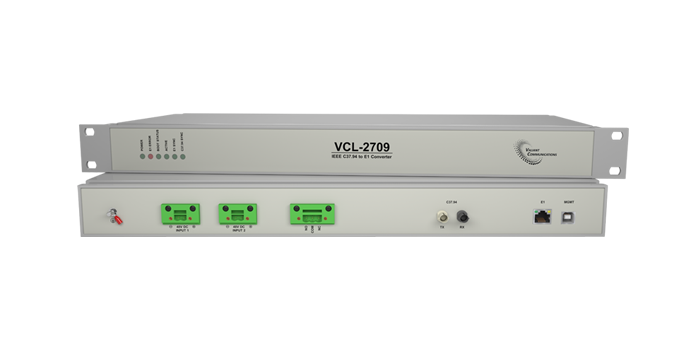

IEEE C37.94 to E1 Converter - 1U
IEEE C37.94 to E1 Converter - DIN
IEEE C37.94 to E1 Converter - 1U



3D View Mechanical Drawing (PDF)

VCL-2709, IEEE C37.94 to E1 Converter

Get Data Sheet

The VCL-2709, IEEE C37.94 to E1 Converter is a ruggedized and robust, substation-hardened protocol converter that converts IEEE C37.94 data to E1 data. VCL-2709 supports point-to-point applications. VCL-2709, IEEE C37.94 to E1 equipment includes precise clock recovery and clock re-generation functions, which allow the transmission of IEEE C37.94 channels over an E1/SDH network for error-free transmission. The most common application for the VCL-2709 converter is for augmenting legacy IEEE C37.94 data transmission over an E1 network between two substations.

E1 Interface Specifications:

  • Interfaces per unit: 1
  • Conformity (electrical): ITU-T G.703
  • Frame structure: As per ITU G.704
  • Code: HDB3, 50 % Duty Cycle
  • Nominal Impedance: 120 Ohms Balanced / 75 Ohms Unbalanced (Option)
  • Nominal pulse width: 244 ns
  • Pulse mask: As per ITU Rec. G.703
  • Jitter tolerance: As per ITU G.823
  • Frame alignment: As per ITU G.732

IEEE C37.94 Interface Specifications Option #1:

  • Interfaces per unit: 1 Tx, 1 Rx
  • Standards: IEEE C37.94
  • Optical connector: ST
  • Optical Transmitter: LED
  • Optical: 820nm/850nm Multi-Mode

IEEE C37.94 Interface Specifications Option #2:

  • Interfaces per unit: 1 Tx, 1 Rx
  • Standards: Modulation as per IEEE C37.94
  • Optical connector: LC (SFP)
  • Optical Transmitter: Laser
  • Optical: 820nm/850nm Multi-Mode, 1310nm/ 1550nm Single Mode

Connectors:

  • Power: Terminal Block, 2-Pin Supply Connector
  • IEEE C37.94 Interface: ST Connector
  • E1 Interface: RJ45 (F) / BNC (F) Connector

Chassis:

  • DIN Rail Mounting.
  • 1U high, 19-inch rack mounting

Power Supply:

  • Internal: 48V DC (18V to 60V DC)
  • External Adapters: 110V DC, 220V DC, 100~240V AC

Compatibility with Line Differential Relays:

Make Model
SEL SEL-311L
Ingeteam INGEPAC
Alstom MiCOM P545, P546
Schneider MiCOM P546
Siemens SIPROTEC 7SL87
Toshiba GRL200
GE L90

MTBF:

  • Per MIL-HDBK-217F: ≥ 37 years @ 24C
  • Per Telcordia SSR 332, Issue 1: ≥ 42 years@ 24C

Electromagnetic Standards Compliance:

  • EN 50081-2
  • EN 50082-2
  • IEC 61000-6-2 (Immunity)
  • IEC 61000-6-4 (Emission)
  • Complies with IEEE and IEC standards

CE Compliance:

  • Low Voltage Directive 2014/35/EU
  • Electromagnetic Compatibility 2014/30/EU

Regulatory Compliances:

  • RoHS, CE Marking
  • Complies with FCC Part 68 and EMC FCC Part 15

Applications Diagram:

Applications

Othre Applications:

Mechanical Drawing (PDF)
